Elbow Fractures



Distal Humerus Fractures

Distal humerus fractures are traumatic injuries that include

  • supracondylar fractures

  • single column (condyle) fractures

  • bicolumn fractures

  • coronal shear fractures

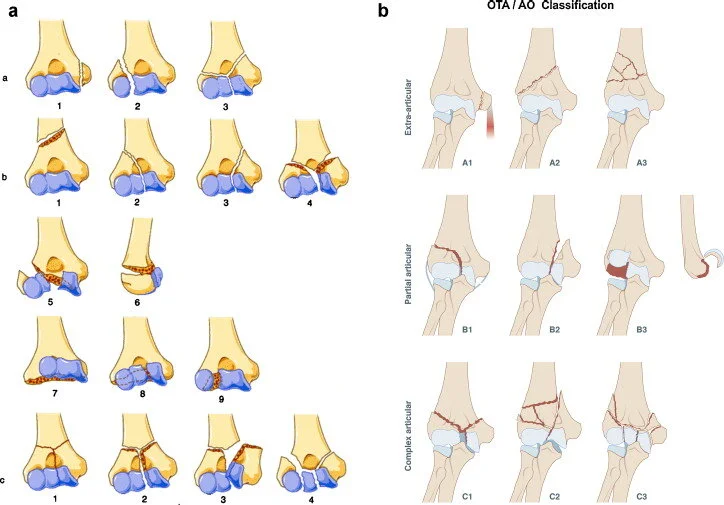

Classification AO/ATO

  • Type A: Extraarticular (supracondylar fracture),80% are extension type; epicondyle

  • Type B: Intraarticular-Single column (partial articular-isolated condylar, coronal shear, epicondyle with articular extension)

  • Type C: Intraarticular-Both columns fractured and no portion of the joint contiguous with the shaft (complete articular)

Distal humerus can be described as 2 columns and a Trochlea

Distal humerus can be described as 2 columns and a Trochlea

distal humerus 2.jpg


Clinical presentation

  • Elbow swelling and pain

  • Gross instability

  • Always check distal pulse (brachial artery cna be injured) and neurologic exam(radial, ulnar,

    and median nerves)

  • Check for Volkmann syndrome

Imaging

  • Xrays : AP + Lateral.

    • FAT PAD sign, if present, shows the presence of infra-radiological fracture

  • CT scan : for communitive or coronal fracture or articular fracture

  • MRI : for avulsion fractures in pediatrics ( non ossified)

Fat pad sign.png

Xray

Xray

Capitellum fracture

Capitellum fracture

CT scan for communitive fracture

CT scan for communitive fracture

MRI  for a non ossified avulsion

MRI for a non ossified avulsion



Treatment

  • concervative treatment for non displaced fractures with an intact lateral trochlea

  • Osteosynthesis

  • Prosthesis ( joint replacement) in communitive fractures in elderly people

Osteosynthesis: perpendicular plating

Osteosynthesis: perpendicular plating

Osteosynthesis (parallel plating)

Osteosynthesis (parallel plating)

Capitellum fracture (coronal fracture)

Capitellum fracture (coronal fracture)

Prosthesis

Prosthesis

Prognosis

  • Majority of patients regain 75% of elbow motion and strength

  • Goal is to restore elbow ROM 30-130° of flexion

  • Unsatisfactory outcomes in up to 25%

    • treatment of these fractures is complex due to

      • low fracture line of one or both columns

      • metaphyseal fragmentation of one or both columns

      • articular comminution

      • poor bone quality




Complications may be Elbow stiffness, nonunion, malunion, AIN injury ( with olecranon osteotoomy), Ulnar nerve injury, heterotopic ossification



Radial head fractures

  • Mechanism of injury: fall on outstretched hand, elbow in extension + forearm in pronation

    (most force transmitted from wrist to radial head)

  • Associated conditions

    • lateral collateral ligament (LCL) injury (80%)

    • Medial collateral ligament (MCL) injury

    • Essex-Lopresti injury

      • distal radioulnar joint (DRUJ) injury

      • interosseous membrane disruption

    • Elbow dislocation

    • Wrsit / scaphoid fracture

Masson classification : 4 types

Masson classification : 4 types

Clinical presentation

  • Pain and stiffness (elbow), especially in prono- suppination

  • Mechanical blocks

  • Check forearm and wrist (DRUJ, interosseous membrane)

  • Check for ligamentous laxity (LCL)

Imaging

  • Xray AP+ L

  • CT scan to evaluate communition and displacement

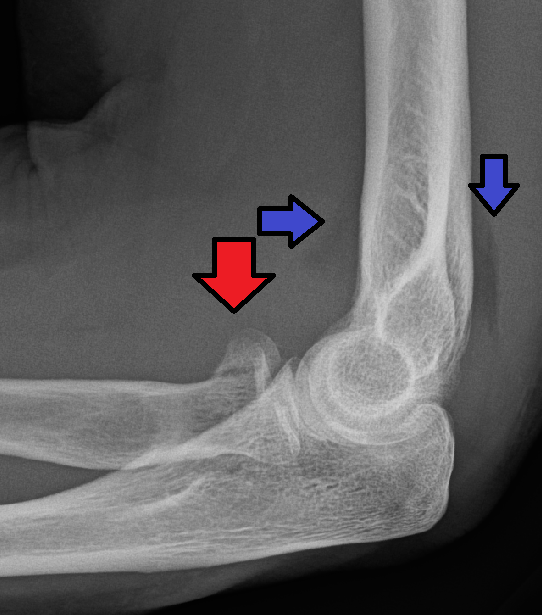

Xray (red arrow)(blue arrow is for Fat Pad sign)

Xray (red arrow)

(blue arrow is for Fat Pad sign)

CT scan

CT scan

Treatment

  • Short period of immobilization followed by early ROM ( Mason 1)

  • Osteosynthesis

  • Prosthesis for communitive fracture

    • There is no place in trauma for radial head excision : High rate of instability

Screws

Screws

Mini-plate & screws

Mini-plate & screws

Prothesis

Prothesis



Potential complications: heterotopic ossifications, stiffness, posterior interosseous nerve damage, infection…..



Olecranon fractures

  • Olecranon fractures are frequent.

  • Secondary to a direct blow on the elbow (communitive fractures), or after a fall onto outstretched upper extremity (transverse or oblique)

  • Treatment

    • Conservative : immobilisation and begin early mobilisation: in elderly or low demanding patients

    • Surgical:

      • Tension band wiring

      • Intramedullary screw

      • Plate & screws: communitive fractures

      • Resection + triceps advancement

Mayo classification

Mayo classification


Tension bande wiring

Tension bande wiring

Plate & screws

Plate & screws

Intramedullary screw

Intramedullary screw

Resection + triceps advancement

Resection + triceps advancement

Complications: stiffness, heterotopic ossifications, non union, symptomatic hardware, flessum….
